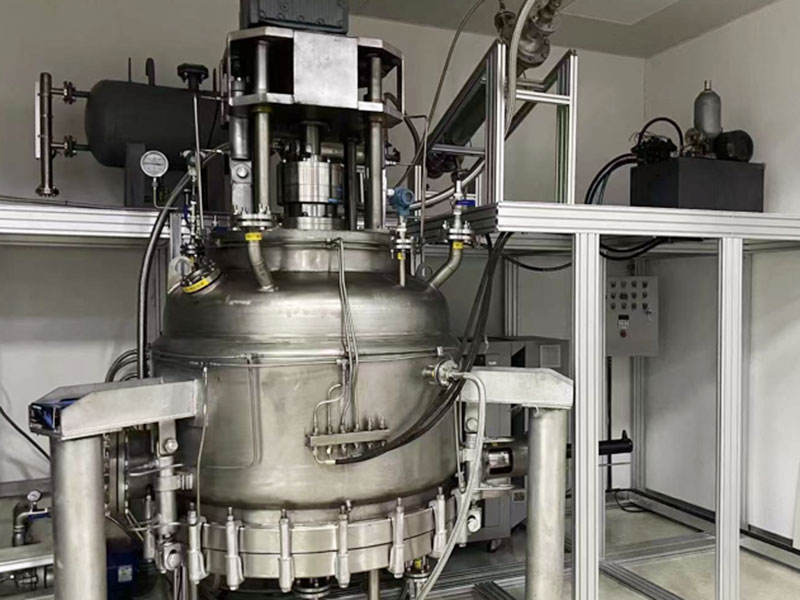

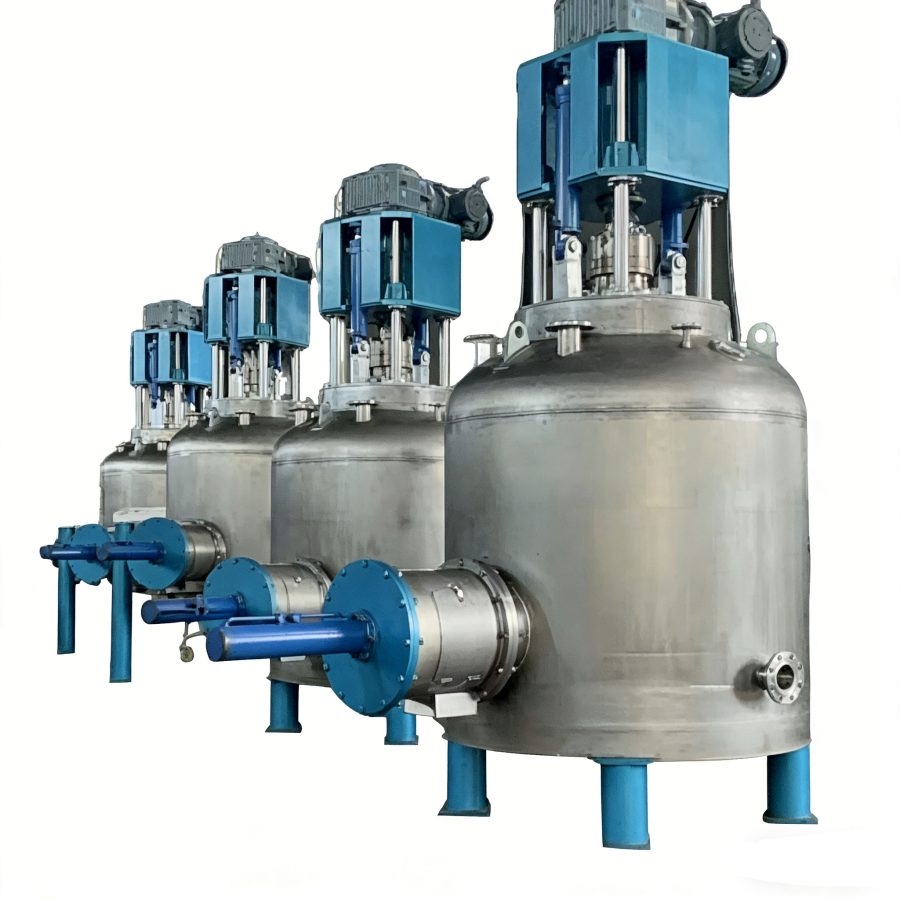

MY Pressure Nutsche Filter / Dryer (Triple-Combined)

Key Features:

Key Feature 1

Closed pressure-vessel design with inert-gas blanketing minimizes solvent vapor emission and protects operators when processing toxic or flammable slurries.

Key Feature 2

Three-in-one operation—pressure filtration, displacement washing and vacuum drying—eliminates intermediate transfers between separate units, shortens overall cycle time and reduces both product loss and cleaning workload.

Key Feature 3

A full-area agitator with lifting, lowering and hydraulic pressing functions ensures uniform cake formation, effective reslurry and displacement washing, and gentle automatic discharge of the dry cake without manual digging.

Key Feature 4

Heating jacket and optional heated agitator provide intensive conductive and convective heat transfer, enabling fast solvent removal, low residual moisture and stable, reproducible product quality.

Key Feature 5

Optimized internals with smooth surfaces and CIP spray nozzles facilitate validated in-place cleaning, making the unit particularly suitable for pharmaceutical, food and other hygiene-critical applications.

Process Characteristics (Technical Analysis):

The MY series is ideal for high-containment solid–liquid separation of products that require intensive washing and controlled drying. Typical duties include filtration, cake conditioning and vacuum drying of high-value intermediates and APIs, battery materials, catalyst and ion-exchange resin slurries, pigment and dye pastes, agrochemical actives, polymer additives and other solids that must be handled in a closed system with low residual solvent or moisture.

Typical Industries and Products:

Pharmaceutical & Biopharma: APIs, intermediates, highly potent compounds, sterile and aseptic products.
Fine & Specialty Chemicals: High-value intermediates, catalysts, polymer additives, functional resins.
Dyes, Pigments & Inks: Organic pigments, specialty dyes, color pastes.
Food & Nutraceuticals: High-value food ingredients, nutraceuticals and health supplements requiring low solvent residues.
Battery & New Energy Materials: Lithium, nickel–cobalt and other electrode or precursor materials requiring tight moisture and contaminant control.
Agrochemicals: Technical-grade pesticide actives and formulated products needing multi-stage washing and contained drying.

Working Principle:

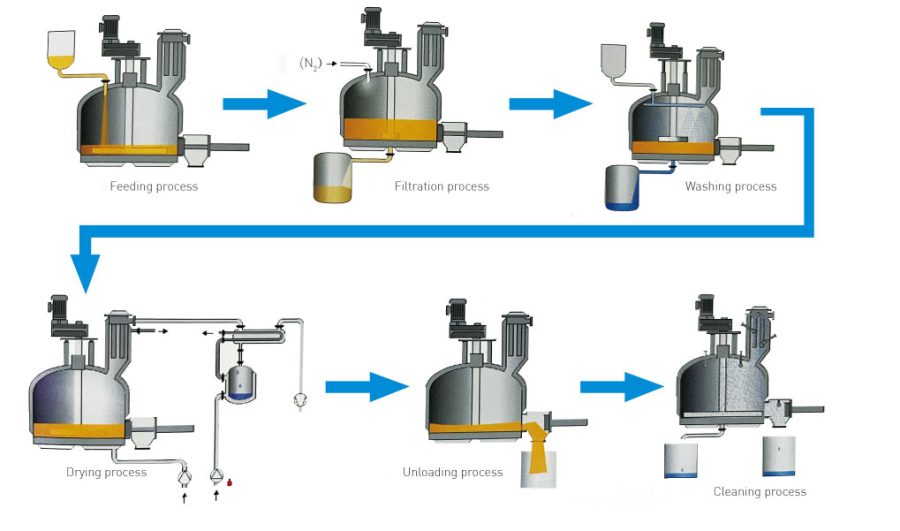

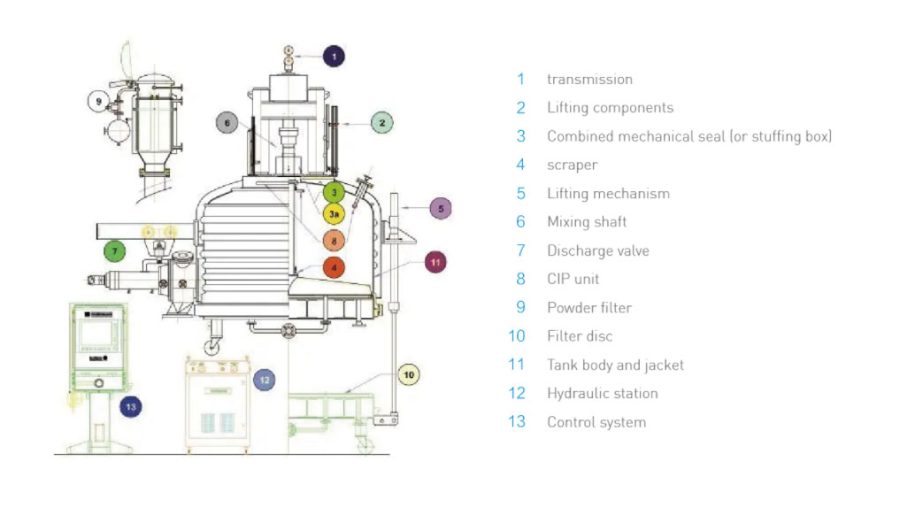

The slurry is charged into the closed vessel, where pressure or vacuum filtration forms a cake on the perforated filter plate. The agitator levels and compresses the cake, then performs reslurry and displacement washing through controlled vertical and rotational movements. After washing, heating and vacuum are applied via the jacket and, if provided, the heated agitator to evaporate solvent and dry the cake. Once the target end-point is reached, the agitator is lowered and reversed to break up the dry cake and push it toward the side discharge outlet. Afterwards, the vessel can be flushed and cleaned in place, preparing the equipment for the next batch.

Configuration Options:

Product Name	Item	Standard configuration	Optional configuration
MY Nutsche Filter / Dryer (Triple)	Process vessel and wetted parts	Vertical pressure-rated closed filter-dryer vessel; product-wetted parts in 316L stainless steel as standard; dished top and bottom heads; fully welded heating/cooling jacket suitable for steam or thermal oil; internal surfaces mechanically polished with typical roughness Ra ≤ 0.6 μm; designed for full vacuum and specified overpressure according to process conditions.	Alternative materials such as 304, 904L, duplex / super-duplex stainless steel, titanium and titanium alloys, Hastelloy or carbon steel with anti-corrosion lining; higher design pressure and temperature ratings; internal electropolishing with Ra ≤ 0.4 μm; dead-leg-free hygienic design; pharmaceutical-grade sanitary manways and head geometry; full 3.1 material and welding traceability documentation.
	Agitator and lifting system	Top-mounted multi-purpose agitator (for de-arching, cake compression, washing, reslurry and drying/scraping) with hollow shaft; standard multi-speed or variable-frequency motor drive; hydraulic or mechanical lifting system for raising and lowering the agitator to level the cake and allow visual inspection and discharge.	High-torque gear reducer with heavy-duty bearings; explosion-proof motor for solvent service; fully variable-speed VFD drive; online torque monitoring for cake condition indication; interchangeable agitator blades or types (anchor, helical ribbon, etc.) to suit different products.
	Filter plate and filter media	Bottom, pressure-rated, one-piece filter plate designed for both pressure and vacuum filtration; plate mounted by bolts or quick-clamp for easy removal and maintenance; standard configuration with sintered metal mesh or wedge-wire metal filter elements sized to the required effective filtration area.	High-precision punched plates, multilayer metal screens, various synthetic-fibre filter cloths or PTFE-coated media; segmented filter plate design for large diameters to allow section-by-section replacement; quick-change cartridge or candle-type filter elements for frequent product changeover.
	Washing and reslurry function	Agitator designed to fully break up and suspend the cake inside the vessel, enabling true reslurry and displacement washing; wash liquid introduced via a wash ring or spray nozzles on the vessel head to provide uniform distribution across the cake surface.	Multiple or zoned wash headers according to process requirements, enabling multi-stage washing; dedicated nozzles for heel and residual-material flushing; filter-plate back-flush function; automated washing sequence control and multi-solvent washing schemes.
	Drying system	Jacket heated with steam or thermal oil as standard; optional multi-zone temperature control for shell, head and bottom; vacuum operation for low-temperature drying to reduce thermal degradation of the product; nitrogen purge connection reserved to accelerate removal of residual solvents.	Optional hollow heated agitator shaft and blades to increase drying efficiency; condenser and solvent-recovery system; high-temperature seals and insulation for high-temperature service; integration of online moisture / solvent content measurement for automatic drying end-point control.
	Pressure and sealing system	Top cover with high-strength flanged or quick-opening design using corrosion-resistant gaskets to ensure fully sealed operation; mechanical seal on the agitator shaft suitable for vacuum and overpressure in typical organic-solvent service; safety valve and/or rupture disc installed in accordance with applicable codes.	Optional sanitary quick-clamp cover, double mechanical seal with external barrier-fluid system, gas-barrier seals for highly toxic or highly volatile products; metal-to-metal sterile sealing, nitrogen inerting systems; vessel design and certification according to PED, ASME or other requested standards.
	CIP and internal cleaning arrangement	Fixed spray ball or rotary spray device installed on the vessel head; smooth internal surfaces with radiused corners to minimise product retention; external ports provided for flushing the filter plate and enabling in-situ cleaning.	Complete CIP/SIP package including cleaning-liquid tank, circulation pump, filtration and automated valve manifolds; steam-sterilisation capability; additional spray devices on the agitator shaft and bottom area for full-coverage cleaning; cleaning validation and spray-coverage calculations supplied to meet GMP requirements.
	Instrumentation and safety protection	Standard package including pressure / vacuum gauge or transmitter, temperature sensors in vessel and jacket, sight glass with light, level switch or differential-pressure level indication, and basic overpressure / overtemperature interlocks.	Optional load cells for in-vessel weighing and mass balance; vibration monitoring, agitator torque and motor current monitoring; online oxygen concentration and solvent-vapour detection; safety interlock loops designed to SIL requirements and emergency nitrogen inerting / venting systems.
	Control and automation	Standard local control box covering main motor start/stop, speed adjustment and basic interlocks; manual operation of process and utility valves.	Fully featured PLC + HMI control system with recipe management, batch reporting and remote access; electrical design for hazardous areas; communication with DCS/SCADA for automatic valve sequencing, trend and alarm recording, in compliance with GMP data-integrity requirements.
	Support frame and installation	Compact support frame with adjustable feet suitable for direct installation on standard industrial floors; lifting lugs provided for transport and positioning.	Reinforced frame designed to meet seismic requirements; integrated operating platform, maintenance ladder and guard rails; vibration-isolating mounts or dedicated anti-vibration foundation; skid-mounted delivery combining vacuum, heating/cooling and CIP systems for plug-and-play installation.

Technical_Specs：

	Model	Casing inner diameter (mm)	Filter area (m²)	Volume (m³)	Maximum cake thickness (mm)	Motor Power for main drive (kW)
MY Pressure Nutsche Filter / Dryer (Triple-Combined)	MY600–N	600	0.25	0.2	200	2.2
	MY800–N	800	0.5	0.48	250	4
	MY1000–N	1000	0.75	0.8	250	4
	MY1200–N	1200	1	1	300	5.5
	MY1400–N	1400	1.5	1.6	400	7.5
	MY1600–N	1600	2	2.4	400	11
	MY1800–N	1800	2.5	3	400	11
	MY2000–N	2000	3	4	500	15
	MY2300–N	2300	4	4.5	500	18.5
	MY2400–N	2400	4.5	5.5	500	18.5
	MY2600–N	2600	5.2	6	500	22
	MY2800–N	2800	6	7.5	500	22
	MY3000–N	3000	7	10	500	30
	MY3200–N	3200	8	11	500	30
	MY3500–N	3500	9	12	500	30
	MY3600–N	3600	10	14	500	37
