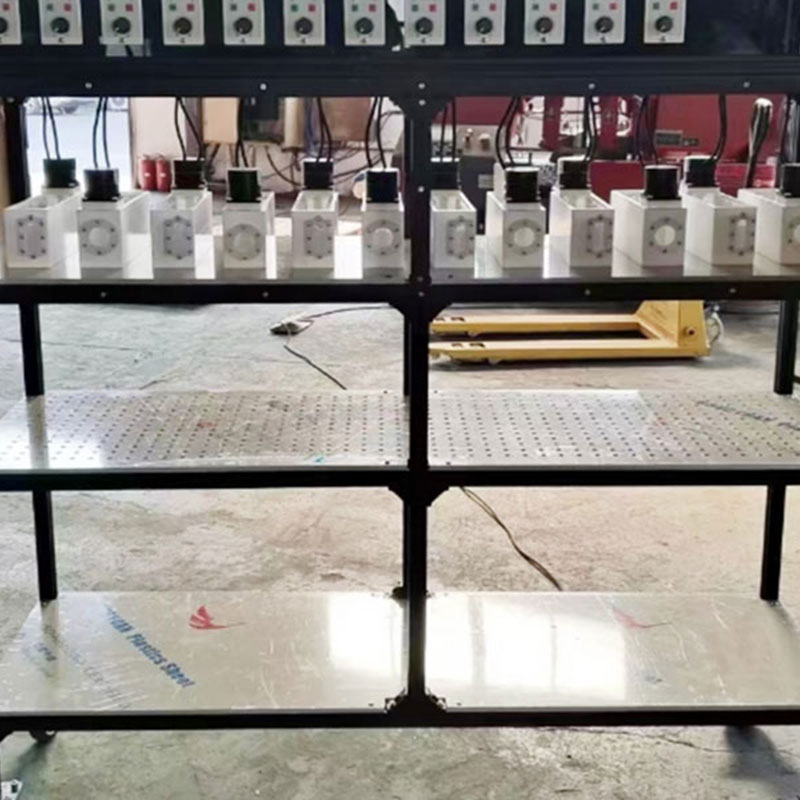

Mixing Clarification Tank (Extraction Tank)
The MCT Series is a modular multi-stage mixing–clarification extraction system for continuous liquid–liquid extraction, washing and stripping. Each stage combines an agitated mixing zone with a dedicated settling compartment, enabling efficient mass transfer and high phase-separation performance in a compact footprint. MCT tanks are widely used in hydrometallurgy, rare-earth extraction, fermentation broth processing and environmental applications where stable phase disengagement and low solvent loss are critical.
- Phone：+86-17751233620
- E-mail：ascendiaauto@gmail.com
Key Features:
Key Feature 1 — Modular multi-stage design
Configure extraction, wash and stripping stages in one train. Easy to expand capacity by adding stages.
Key Feature 2 — Continuous operation with stable phase disengagement
Dedicated settling zone and overflow weirs maintain a stable interface and reduce entrainment.
Key Feature 3 — Optimized mixing vs. emulsification
Controlled-turbulence mixing zone improves mass transfer while avoiding excessive shear that causes emulsions.
Key Feature 4 — Simple structure, easy maintenance
Easy access to mixer, weirs and internals for inspection and cleaning; ideal for multi-product campaigns.
Key Feature 5 — Corrosion-resistant material options
PVC/PP/PVDF or lined carbon steel / SS304/316L options to match acids, alkalis and solvent systems.
Working Principle :
Each stage consists of a mixing zone and a clarification (settling) zone:
Two immiscible phases (organic/aqueous) enter the mixing zone at a controlled ratio and are gently but efficiently mixed to complete mass transfer.
The dispersion flows into the clarification zone where turbulence is minimized; phases disengage by density difference and overflow through weirs.

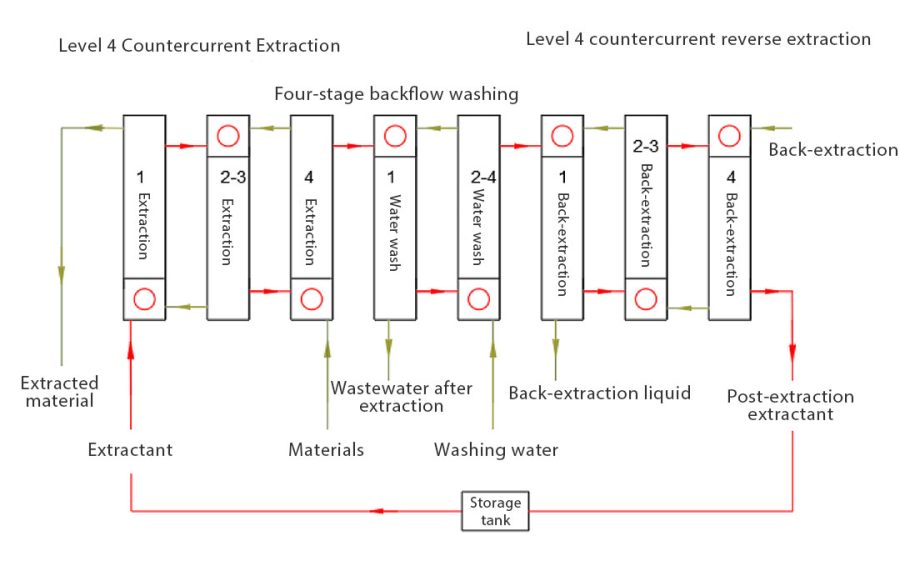

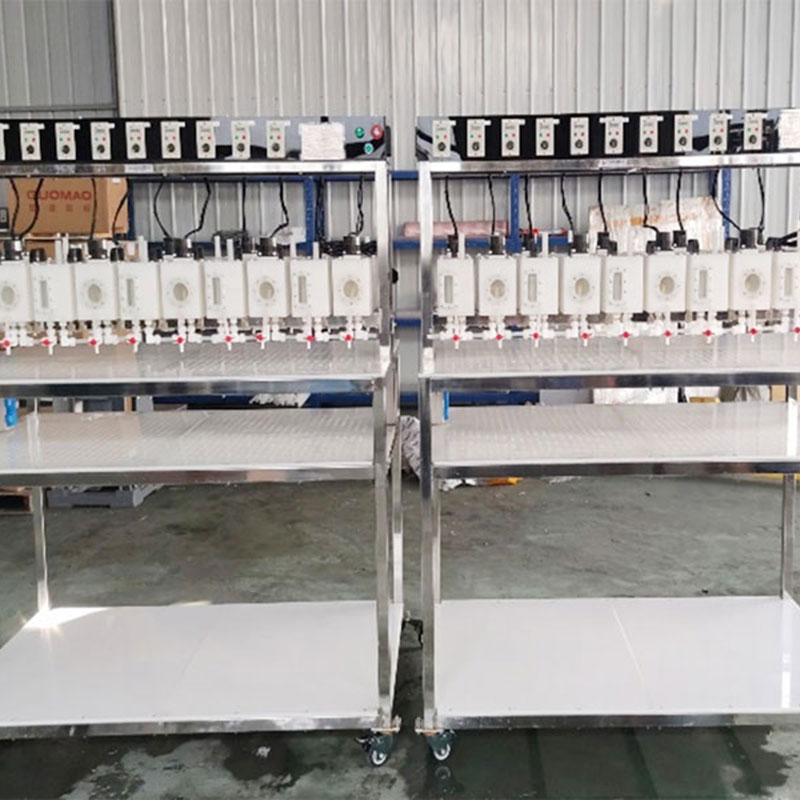

Multi-stage connection enables counter-current extraction, counter-current washing, or stripping/back-extraction depending on your flowsheet.
Typical Applications (Industries) :
Hydrometallurgy & rare earth extraction (Cu/Ni/Co/Mn/Li, REE)
Battery materials & brine processing (extraction / washing / stripping)
Fermentation broth processing and environmental separation duties
Solvent-based purification processes where stable phase separation is critical
Configuration Options:
| Product Name | Item | Standard configuration | Optional configuration |
| Mixing Clarification Tank | Materials of construction | Standard configuration with PVC and PP material for non-corrosive applications; welded construction with smooth interior surfaces. | Option for PVDF lining, special coatings, or corrosion-resistant alloys (316L SS) for more aggressive environments, high-temperature, or pharmaceutical-grade applications. |
| Filtration & separation | Designed with internal agitators and separating screens for efficient phase separation; equipped with sludge discharge valve for solid removal. | Additional filtration units or multi-stage separation zones for highly viscous or difficult-to-separate mixtures; automatic discharge valve and integrated solids collection system. | |
| Drive & control | Standard AC motor with VFD for continuous mixing; manual control for basic operations. | Advanced PLC-based control system with automatic stage control, integrated flow meters, and level sensors for feed and solvent, remote monitoring, and data logging. | |
| Instrumentation & safety | Basic level and pressure monitoring, overflow protection, emergency shut-off valve for high pressure. | Advanced monitoring including vibration sensors, load cells for weight tracking, temperature sensors, nitrogen purging system for hazardous chemicals, and explosion-proof electrical components. | |
| Cleaning system | Cleaning nozzles integrated in the tank for manual or automated cleaning. | Complete CIP (cleaning-in-place) system with dedicated cleaning fluid tanks, adjustable spray nozzles, and automated wash cycle integration. | |
| Sealing & protection | Standard mechanical seals with leak detection; rubber gaskets for flange joints. | Optional double mechanical seals, PTFE gaskets, full containment seal systems for hazardous liquids and solvents, or inert-gas purging. | |
| Installation & assembly | Standard skid-mounted assembly with adjustable supports; minimal installation requirements. | Complete turnkey installation with platform, piping connections, control integration, and pre-commissioning support. |
Technical_Specs:
| Product Name | Model | Drum diameter (mm) | Drum height (mm) | Max volume (L) | Max load (kg) | Max speed (rpm) | Max G-force | Motor power (kW) | Machine dimension L×W×H(mm) | Machine weight (kg) |
| Mixing Clarification Tank | MCT300 | 300 | 700 | 300 | 200 | 40–80 | 550–800 | 3 | 1500×600×1000 | 450 |
| MCT500 | 500 | 1000 | 500 | 300 | 30–60 | 500–700 | 4 | 1800×800×1200 | 800 | |
| MCT800 | 800 | 1500 | 1000 | 500 | 20–50 | 400–600 | 5.5 | 2000×1000×1400 | 1500 | |
| MCT1000 | 1000 | 2000 | 1500 | 700 | 15–40 | 350–500 | 7.5 | 2200×1200×1600 | 2000 |
